Precision Dual-Axis Angle Drilling Table for Perfect Joint Alignment

Product Introduction

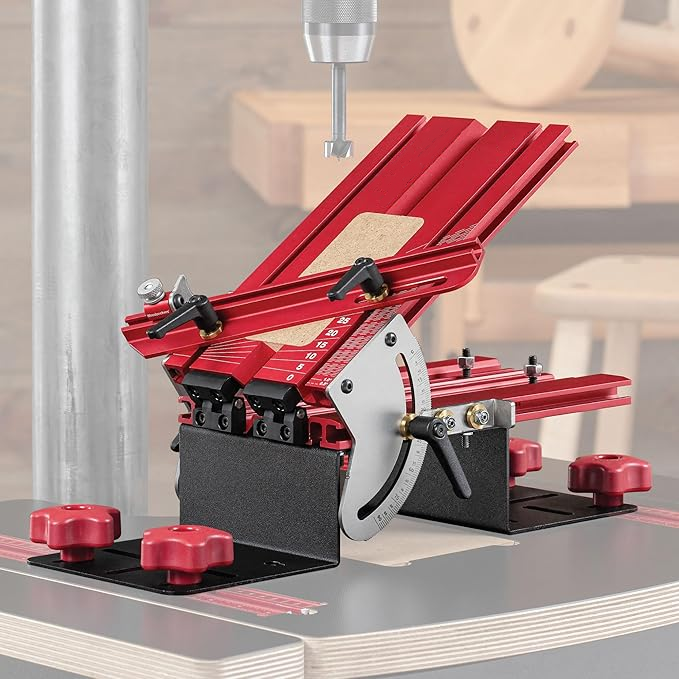

This advanced angle drilling table is designed to transform the way you drill angled joints with absolute precision and stability. Built for woodworkers who demand accuracy, it allows you to position, lock, and drill complex angled connections with confidence.

Product Features

🔧 Dual-Axis Precision Control:Adjustable table system allows smooth angle positioning from 0° to 90° in both directions, giving you full control over complex drilling angles.

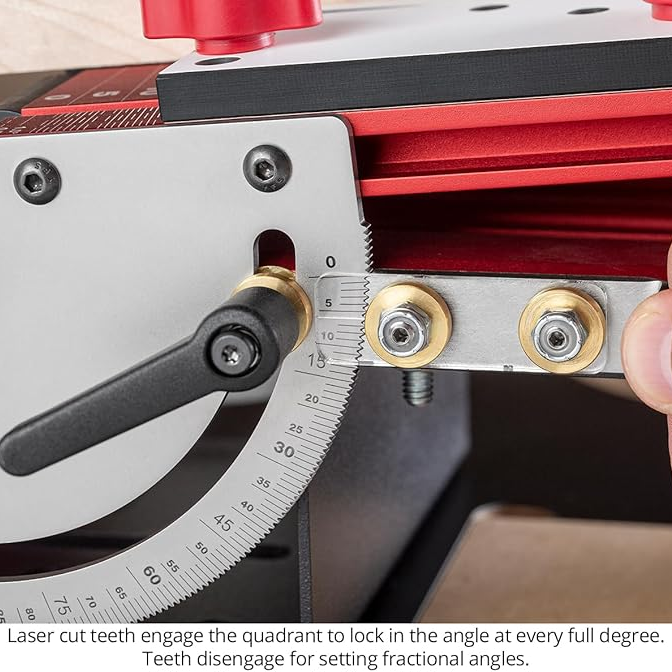

⚙️ Secure Locking Mechanism:Laser-cut engagement teeth and stainless steel locking quadrants ensure rock-solid stability, even under heavy drilling pressure.

📐 Multi-Directional Setup Base:The base can be mounted in multiple orientations, allowing flexible positioning for different workpieces and drilling directions.

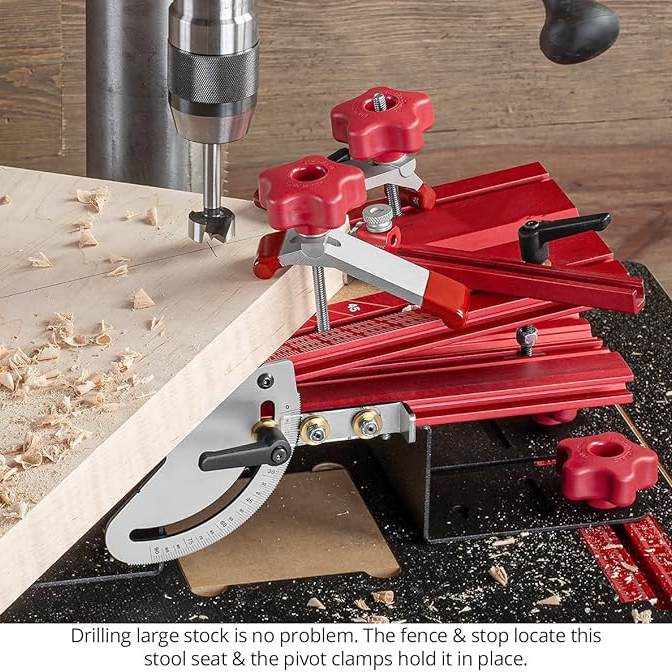

📏 Extended Material Handling Capability:Can be configured to support long workpieces and edge-hanging setups, perfect for legs, rails, and extended components.

Product Specifications

• Working Surface: 10.25" × 6" anodized aluminum

• Angle Range: 0° – 90° adjustable in both directions

• Height Range: 4-3/8" (flat) up to 14-1/8" (vertical setup)

• Base Compatibility: Designed for drill presses 12" capacity and larger

• Mounting System: Multi-slot base compatible with T-track and custom drill press tables

Package Contents

• 1 × Angle Adjustable Drilling Table Base System

• 1 × Adjustable Angle Table Unit

• 1 × Precision Fence System

• 1 × Set of Positioning Stops
